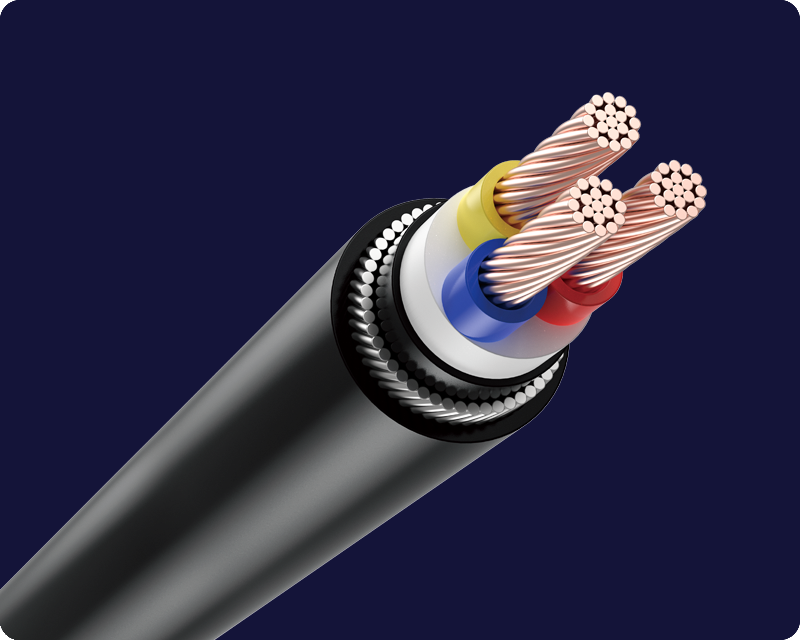

PVC Insulation and sheath three core armoured copper core cable
|
Application
|
Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
|
|
Specification
|
NIS/EC 60502-1, BS6346
|
|
Type
|
ARMOURED-PVC/PVC-3C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃
The maximum rated current in the air is considered at 40℃ temperature
RS= round stranded conductor
RW= solid circular line (conductor)
Parameters
Nominal Cross-sectional Area | Number of Conductors Diameter | Minimum Thickness within the Range | Armour Wire Diameter | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | |||
(mm2) | (mm) | Insulation (mm) | Inner sheath (mm) | Outer sheath (mm) | (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
3*1.5RW | 3*1.38 | 0.6 | 0.8 | 1.4 | 0.8 | 13.5 | 27 | 19 | 12.1 | 330 | 1000 | R10 Drum |
3*2.5RW | 3*1.78 | 0.7 | 0.8 | 1.4 | 0.8 | 14.8 | 35 | 26 | 7.41 | 390 | 1000 | R10 Drum |
3*4.0RW | 3*2.25 | 0.8 | 0.8 | 1.4 | 1.25 | 17 | 47 | 35 | 4.61 | 580 | 1000 | R12 Drum |
3*6.0RW | 3*2.76 | 0.8 | 0.8 | 1.5 | 1.25 | 18 | 59 | 45 | 3.08 | 700 | 1000 | R12 Drum |
3*10.0RS | 3*7/1.35 | 1 | 0.8 | 1.6 | 1.6 | 21.1 | 78 | 62 | 1.83 | 940 | 1000 | R12 Drum |
3*16.0RS | 3*7/1.70 | 1 | 0.8 | 1.6 | 1.6 | 24.1 | 101 | 83 | 1.15 | 1190 | 1000 | R14 Drum |
3*25.0RS | 3*7/2.13 | 1.2 | 1 | 1.7 | 1.6 | 26.6 | 132 | 110 | 0.727 | 1770 | 1000 | R14 Drum |
3*35.0RS | 3*7/2.52 | 1.2 | 1 | 1.8 | 1.6 | 29.2 | 159 | 135 | 0.524 | 2160 | 1000 | R14 Drum |
3*50.0RS | 3*19/1.78 | 1.4 | 1 | 1.9 | 2 | 30.5 | 188 | 163 | 0.387 | 2610 | 1000 | R14 Drum |
3*70.0RS | 3*19/2.13 | 1.4 | 1.2 | 2 | 2 | 35 | 233 | 207 | 0.268 | 3650 | 1000 | R16 Drum |
3*95.0RS | 3*19/2.52 | 1.6 | 1.2 | 2 | 2.5 | 39.3 | 279 | 251 | 0.193 | 2340 | 500 | R16 Drum |
3*120.0RS | 3*37/2.03 | 1.6 | 1.3 | 2.4 | 2.5 | 42 | 317 | 290 | 0.153 | 2780 | 500 | R18 Drum |
3*150.0RS | 3*37/2.25 | 1.8 | 1.3 | 2.5 | 2.5 | 46 | 355 | 332 | 0.124 | 3550 | 500 | R18 Drum |
3*185.0RS | 3*37/2.52 | 2 | 1.4 | 2.7 | 2.5 | 51 | 401 | 378 | 0.0991 | 4275 | 500 | R20 Drum |
3*240.0RS | 3*61/2.25 | 2.2 | 1.5 | 2.9 | 2.5 | 56 | 462 | 445 | 0.0754 | 5365 | 500 | R20 Drum |
