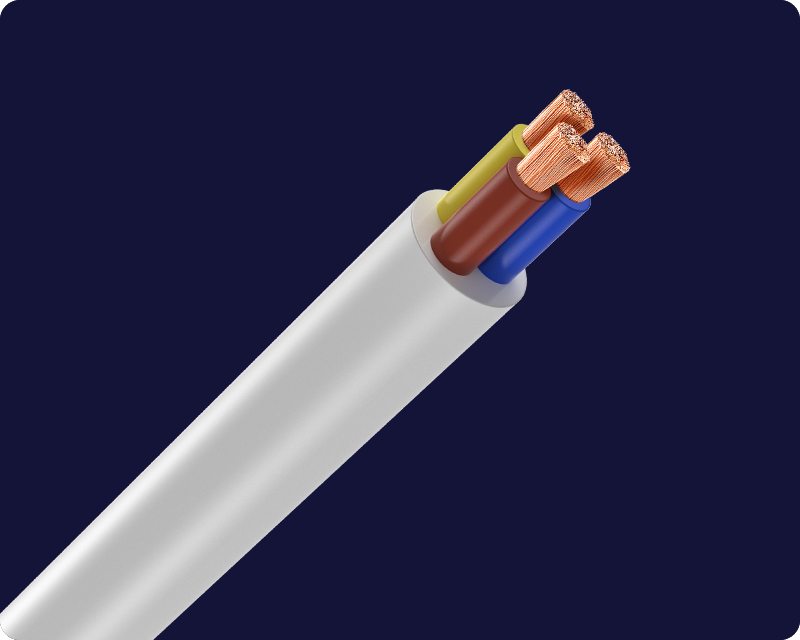

PVC Insulation and sheath round copper flexible three core
|
Application
|
Connection of household and other electronic devices to power systems
|
|
Specification
|
NIS/IEC 60228, NIS/IEC 60227-5
|
|
Reference
|
BS6500, NIS159
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃
The maximum rated current in the air is considered at 40℃ temperature
RS= round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
3*0.5RS | 3*16*0.20 | 0.6 | 0.8 | 6.6 | - | 5 | 39 | 6.2 | 100 | Coil |
3*1.0RS | 3*32*0.20 | 0.6 | 0.8 | 7.3 | - | 11 | 19.5 | 7.8 | 100 | Coil |
3*1.5RS | 3*48*0.20 | 0.7 | 0.9 | 8 | - | 16 | 13.3 | 10.2 | 100 | Coil |
3*2.5RS | 3*79*0.20 | 0.8 | 1.1 | 9..5 | - | 22 | 7.98 | 15.8 | 100 | Coil |
3*4.0RS | 3*81*0.25 | 0.8 | 1.1 | 11.09 | - | 30 | 4.95 | 26.7 | 100 | Coil |
3*6.0RS | 3*84*0.30 | 0.8 | 1.2 | 13.2 | - | 60 | 3.3 | 18-22 | 100 | Coil |
