0.6/1KV

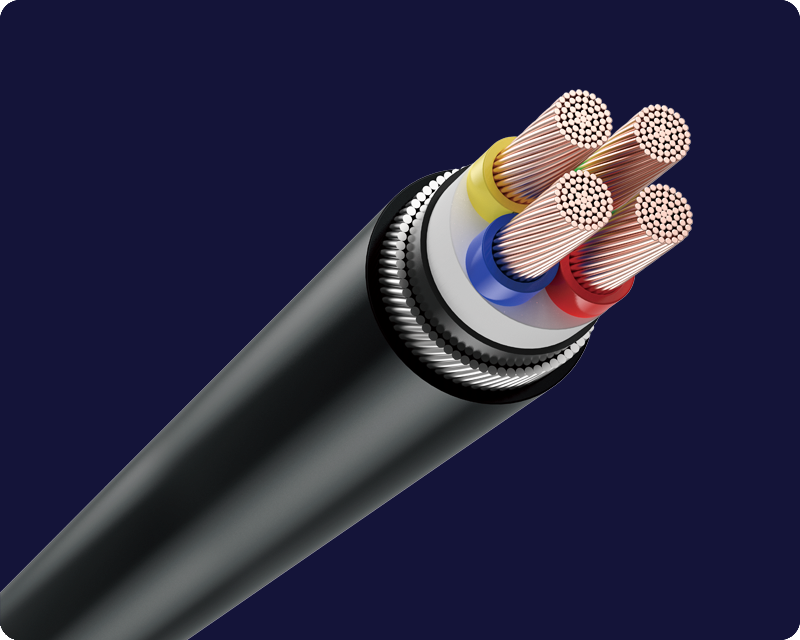

PVC Insulation and sheath four core armoured copper core cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
Specification	NIS/EC 60502-1, BS6346
Type	ARMOURED-PVC/PVC-4C

Precautions

01

/

The maximum allowable temperature of the conductor under use is 70℃

02

/

The maximum rated current on the ground is considered when the ground temperature is 35℃

03

/

The maximum rated current in the air is considered at 40℃ temperature

Parameters

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
4*4	4*7/0.86	1	1	1.8	1.25	17	27	19	4.61	670	1000	R12 Drum
4*6	4*7/1.06	1	1	1.8	1.25	18	35	26	3.08	820	1000	R12 Drum
4*10	4*7/1.35	1	1	1.8	1.6	21	47	35	1.83	1050	1000	R14 Drum
4*16	4*7/1.70	1	1	1.8	1.6	25	59	45	1.15	1560	1000	R14 Drum
4*25	4*7/2.13	1.2	1	1.9	1.6	29	78	62	0.727	2070	1000	R16 Drum
4*35	4*7/2.52	1.2	1	2.1	1.6	33	101	83	0.524	2510	1000	R16 Drum
4*50	4*19/1.78	1.4	1.2	2.2	2	35	132	110	0.387	3470	1000	R16 Drum
4*70	4*19/2.13	1.4	1.2	2.4	2	39	159	135	0.268	2240	500	R18 Drum
4*95	4*19/2.52	1.6	1.2	2.6	2	43	188	163	0.193	3095	500	R18 Drum
4*120	4*37/2.03	1.6	1.4	2.7	2.5	47	233	207	0.153	3735	500	R20 Drum
4*150	4*37/2.25	1.8	1.4	2.9	2.5	52	279	251	0.124	4455	500	R20 Drum
4*185	4*37/2.52	2	1.6	3	2.5	57	317	290	0.0991	5430	500	R22 Drum
4*240	4*61/2.25	2.2	1.6	3.4	2.5	63	355	332	0.0754	6730	500	R22 Drum
