0.6/1KV

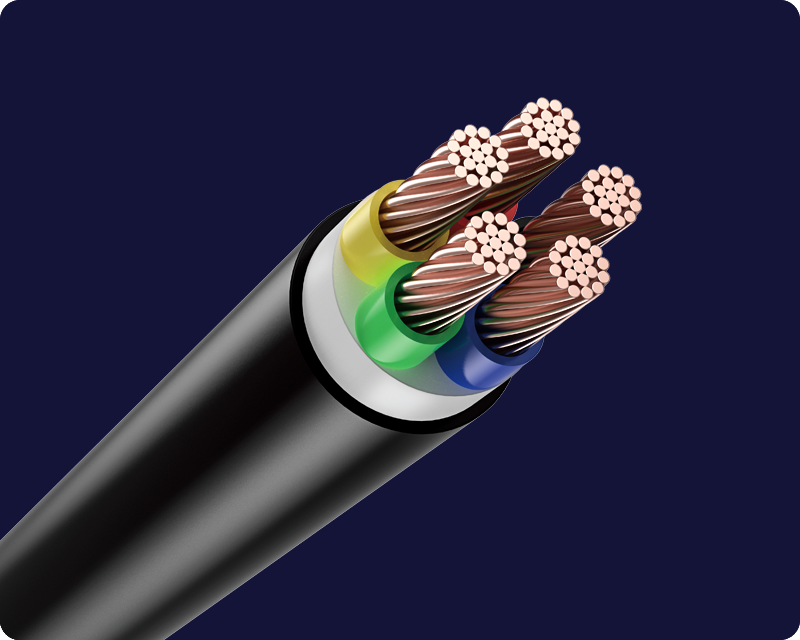

PVC Insulation and sheath five core non-armoured copper cable

Application	Suitable for fixed installation in dry or wet environment
Specification	BS6346NIS/IEC60502-1
Type	UNARMOURED-PVC/PVC-5C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
5*1.5RW	5*1.38	0.8	1.8	14.1	27	20	12.1	150	1000	R10 Drum
5*2.5RW	5*1.78	0.8	1.8	15.2	35	26	7.41	250	1000	R10 Drum
5*4.0RS	5*7/0.86	1	1.8	17.8	45	34	4.61	400	1000	R12 Drum
5*6.0RS	5*7/1.06	1	1.8	19.2	57	43	3.08	643	1000	R12 Drum
5*10RS	5*7/1.35	1	1.8	22.8	77	60	1.83	763	1000	R12 Drum
5*16RS	5*7/1.70	1	1.8	25.8	105	83	1.15	1102	1000	R14 Drum
5*25RS	5*7/2.13	1.2	1.8	30.9	125	105	0.727	1655	1000	R14 Drum
5*35RS	5*7/2.52	1.2	1.8	34.2	155	125	0.524	1064	500	R14 Drum
5*50RS	5*19/1.78	1.4	2	38.6	185	160	0.387	1513	500	R16 Drum
5*70RS	5*19/2.13	1.4	2.1	41	225	200	0.268	1992	500	R16 Drum
5*95RS	5*19/2.52	1.6	2.3	49.1	270	245	0.193	2680	500	R18 Drum
5*120RS	5*37/2.03	1.6	2.4	53.7	310	285	0.153	3385	500	R18 Drum
5*150RS	5*37/2.25	1.8	2.6	59.5	345	325	0.124	4231	500	R20 Drum
5*185RS	5*37/2.52	1.8	2.8	65.3	450	440	0.0991	5217	500	R20 Drum
