0.6/1KV

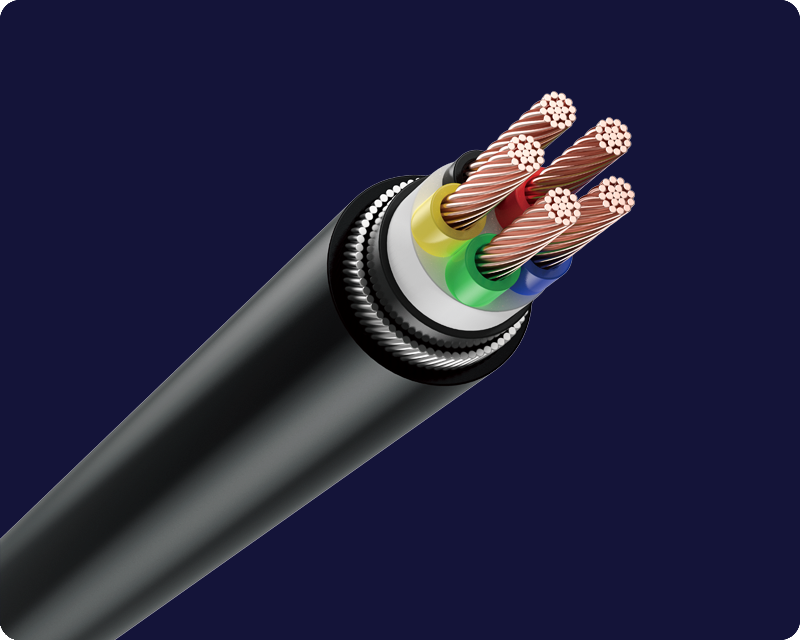

PVC Insulation and sheath five core armoured copper core cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
Specification	NIS/EC 60502-1, BS6346
Type	ARMOURED-PVC/PVC-5C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
5*4.0RS	5*7/0.86	1	1.2	1.8	1.25	16	45	34	4.61	423	1000	R12 Drum
5*6.0RS	5*7/1.06	1	1.2	1.8	1.25	18	57	43	3.08	536	1000	R14 Drum
5*10RS	5*7/1.35	1	1.2	1.8	1.6	21	77	60	1.83	776	1000	R14 Drum
5*16RS	5*7/1.70	1	1.2	1.8	1.6	24	105	83	1.15	1093	1000	R16 Drum
5*25RS	5*7/2.13	1.2	1.2	1.9	1.6	28	125	105	0.727	1602	1000	R16 Drum
5*35RS	5*7/2.52	1.2	1.2	2	2	31	155	125	0.524	1037	500	R16 Drum
5*50RS	5*19/1.78	1.4	1.4	2.2	2	35	185	160	0.387	1411	500	R18 Drum
5*70RS	5*19/2.13	1.4	1.4	2.3	2	40	225	200	0.268	1958	500	R18 Drum
5*95RS	5*19/2.52	1.6	1.4	2.5	2.5	46	270	245	0.193	2624	500	R20 Drum
5*120RS	5*37/2.03	1.6	1.6	2.6	2.5	50	310	285	0.153	1619	250	R20 Drum
5*150RS	5*37/2.25	1.8	1.6	2.8	2.5	55	345	325	0.124	2004	250	R22 Drum
5*185RS	5*37/2.52	2	1.6	3	2.5	62	450	440	0.0991	2522	250	R22 Drum
