LOGOSTAR
0.6/1KV

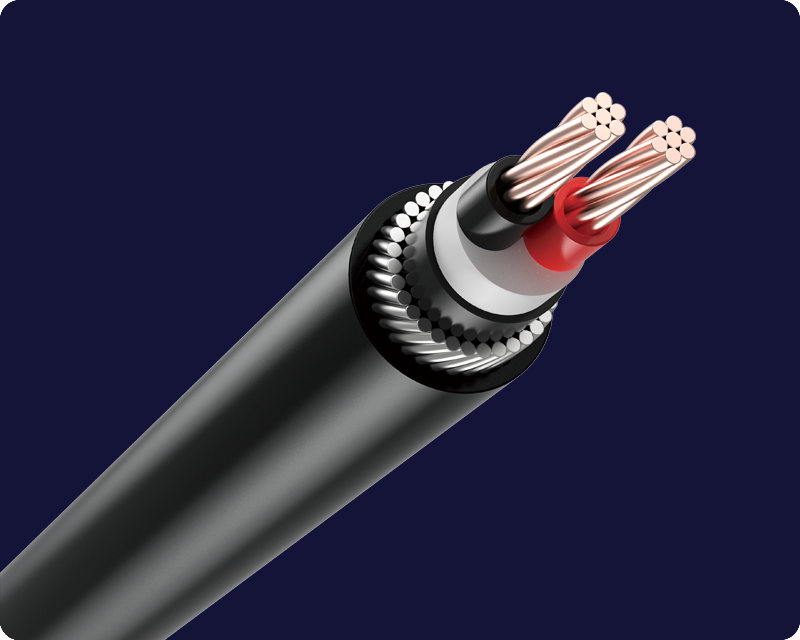

PVC Insulation and sheath double core armoured copper core cable

Application
Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
Specification
NIS/EC 60502-1, BS6346
Type
ARMOURED-PVC/PVC-2C
CONTACT US BACK TO LIST

Precautions

01
/

The maximum allowable temperature of the conductor under use is 70℃

02
/

The maximum rated current on the ground is considered when the ground temperature is 35℃

03
/

The maximum rated current in the air is considered at 40℃ temperature

04
/

RS= round stranded conductor

05
/

RW= solid circular line (conductor)

Parameters

Nominal   Cross-sectional Area

Number of   Conductors Diameter

Minimum Thickness within the Range

Armour Wire   Diameter

Nominal Outer   Diameter

Maximum Rated   Current

Maximum   Conductor Resistance at 20℃

Approximate   Net  Weight/Standard  Delivery Length

Standard   Delivery Length

Form of Delivery

(mm2)

(mm)

Insulation (mm)

Inner sheath   (mm)

Outer sheath   (mm)

(mm)

(mm)

within the   domain (A)

in the air (A)

(Ω/km)

(kg)

(m)

(Coil/Wooden   Drum)

2*1.5RW

2*1.38

0.8

0.8

1.8

0.8

13

32

22

12.1

316

1000

R10 Drum

2*2.5RW

2*1.78

0.9

0.8

1.8

0.8

14.2

41

31

7.41

391

1000

R10 Drum

2*4.0RW

2*2.25

1

0.8

1.8

1.25

16.3

55

41

4.61

560

1000

R12 Drum

2*6.0RW

2*2.76

1

0.8

1.8

1.25

17.3

69

53

3.08

650

1000

R12 Drum

2*10.0RS

2*7/1.35

1

0.8

1.8

1.25

19.9

92

72

1.83

881

1000

R12 Drum

2*16.0RS

2*7/1.70

1

0.8

1.8

1.6

22.2

119

97

1.15

1155

1000

R14 Drum

2*25.0RS

2*7/2.13

1.2

1

2

1.6

25.2

158

128

0.727

1639

1000

R14 Drum

2*35.0RS

2*7/2.52

1.2

1

2

1.6

27.6

190

157

0.524

1843

1000

R14 Drum

2*50.0RS

2*19/1.78

1.4

1

1.9

1.6

30.8

225

190

0.387

1163

500

R14 Drum

2*70.0RS

2*19/2.13

1.4

1

1.9

2

35.2

277

241

0.268

1542

500

R16 Drum

2*95.0RS

2*19/2.52

1.6

1.2

2.1

2

40

332

291

0.193

2034

500

R16 Drum

2*120RS

2*37/2.03

1.6

1.2

2.2

2

41.6

377

336

0.153

2435

500

R18 Drum

2*150RS

2*37/2.25

1.8

1.2

2.3

2.5

48.2

422

386

0.124

2951

500

R18 Drum

2*185RS

2*37/2.52

2

1.4

2.8

2.5

57.1

441

438

0.9991

3647

500

R20 Drum

2*240RS

2*61/2.25

2.2

1.6

3

2.5

64.2

459

456

0.0754

3740

500

R20 Drum
