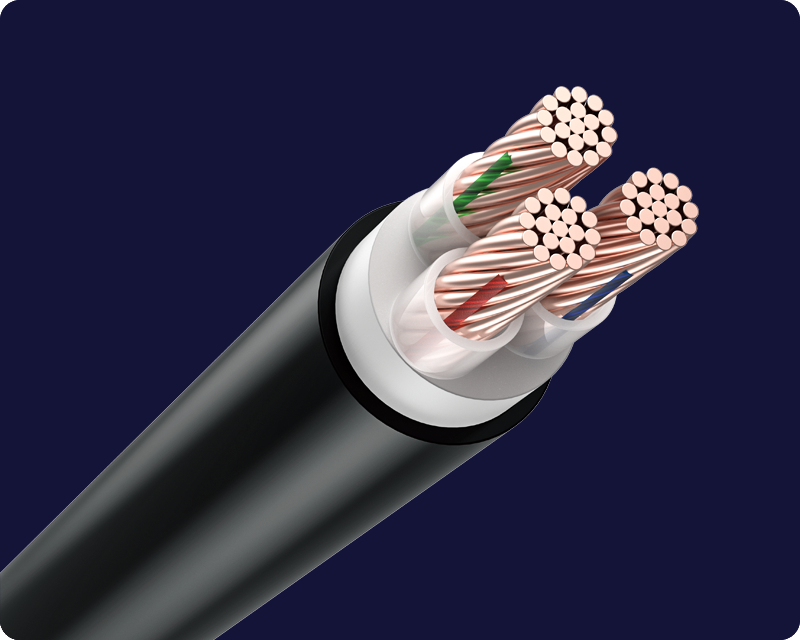

PVC Insulation and cross-linked material three core non-armor copper
|
Application
|
Suitable for fixed installation in dry or wet environment
|
|
Specification
|
BS 6346, NIS/IEC 60502-1
|
|
Type
|
XLPE/PVC-3C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃ .
The maximum rated current in the air is considered at 40℃ temperature
RS= round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
3*4.0RS | 3*7/0.86 | 0.7 | 1.8 | 12 | 47 | 35 | 4.61 | 221 | 1000 | R10 Drum |
3*6.0RS | 3*7/1.06 | 0.7 | 1.8 | 13 | 59 | 45 | 3.08 | 293 | 1000 | R10 Drum |
3*10.0RS | 3*7/1.35 | 0.7 | 1.8 | 16 | 78 | 62 | 1.83 | 445 | 1000 | R12 Drum |
3*16.0RS | 3*7/1.70 | 0.7 | 1.8 | 18 | 101 | 83 | 1.15 | 647 | 1000 | R12 Drum |
3*25.0RS | 3*7/2.13 | 0.9 | 1.8 | 22 | 132 | 110 | 0.727 | 959 | 1000 | R14 Drum |
3*35.0RS | 3*7/2.52 | 0.9 | 1.8 | 24 | 159 | 135 | 0.524 | 1274 | 1000 | R14 Drum |
3*50.0RS | 3*19/1.78 | 1 | 1.8 | 26 | 188 | 163 | 0.387 | 1590 | 1000 | R14 Drum |
3*70.0RS | 3*19/2.13 | 1.1 | 1.9 | 28 | 233 | 207 | 0.268 | 1114 | 500 | R16 Drum |
3*95RS | 3*19/2.52 | 1.1 | 2 | 31 | 279 | 251 | 0.193 | 1508 | 500 | R16 Drum |
3*120RS | 3*37/2.03 | 1.2 | 2.1 | 34 | 317 | 290 | 0.153 | 1882 | 500 | R18 Drum |
3*150RS | 3*37/2.25 | 1.4 | 2.3 | 38 | 355 | 332 | 0.124 | 2483 | 500 | R18 Drum |
3*185RS | 3*37/2.52 | 1.6 | 2.4 | 42 | 401 | 378 | 0.0991 | 2889 | 500 | R18 Drum |
3*240RS | 3*61/2.25 | 1.7 | 2.6 | 52 | 462 | 445 | 0.0754 | 3757 | 500 | R20 Drum |
