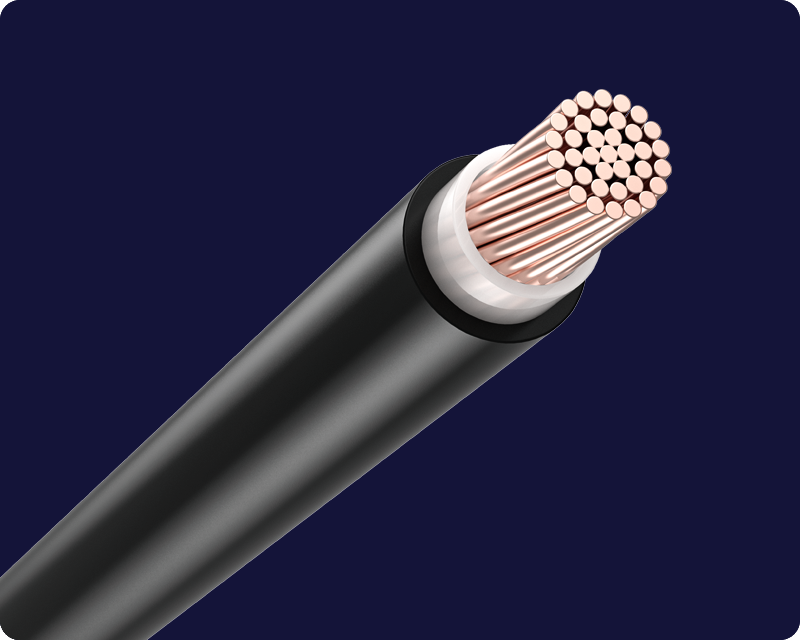

PVC Insulation and cross-linked material single core non-armor copper
|
Application
|
Used for indoor installation, cable conduit/tray in industrial plant, substation and power distribution scheme
|
|
Specification
|
NIS/EC60502-1, BS6346
|
|
Type
|
XLPE/PVC-1C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃
The maximum rated current in the air is considered at 40℃ temperature
RS= round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
50RS | 19*1.78 | 1 | 1.5 | 13 | 203 | 181 | 0.387 | 555 | 1000 | R8 Drum |
70RS | 19*2.13 | 1.1 | 1.5 | 14 | 248 | 231 | 0.268 | 770 | 1000 | R10 Drum |
95RS | 19*2.52 | 1.1 | 1.5 | 16.4 | 297 | 280 | 0.193 | 1040 | 1000 | R10 Drum |
120RS | 19*2.89 | 1.2 | 1.5 | 17.8 | 337 | 324 | 0.153 | 1290 | 1000 | R10 Drum |
150RS | 37*2.25 | 1.4 | 2 | 20.6 | 376 | 373 | 0.124 | 1590 | 1000 | R10 Drum |
185RS | 37*2.52 | 1.6 | 2 | 22.5 | 423 | 425 | 0.0991 | 1944 | 1000 | R10 Drum |
240RS | 61*2.25 | 1.7 | 2 | 24.9 | 485 | 501 | 0.0754 | 1255 | 500 | R12 Drum |
300RS | 61*2.52 | 1.8 | 2.5 | 27.3 | 542 | 567 | 0.0601 | 1538 | 500 | R12 Drum |
400RS | 61*2.85 | 2 | 2.5 | 34.1 | 600 | 657 | 0.047 | 1821 | 500 | R16 Drum |
500RS | 61*3.20 | 2.2 | 2.6 | 45.6 | 660 | 731 | 0.0366 | 3012 | 500 | R14 Drum |
