0.6/1KV

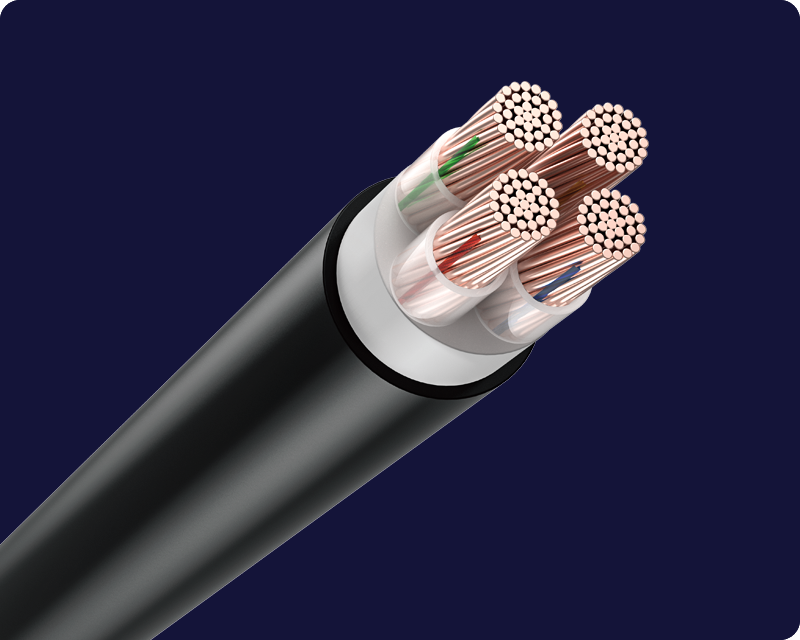

PVC Insulation and cross-linked material four core non-armor copper

Application	Suitable for fixed installation in dry or wet environment
Specification	BS 6346, NIS/IEC 60502-1
Type	XLPE/PVC-4C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
4*4.0RS	4*7/0.86	0.7	1.8	13	47	35	4.61	274	1000	R10 Drum
4*6.0RS	4*7/1.06	0.7	1.8	14	59	45	3.08	363	1000	R10 Drum
4*10RS	4*7/1.35	0.7	1.8	17	78	62	1.83	559	1000	R12 Drum
4*16RS	4*7/1.70	0.7	1.8	20	101	83	1.15	815	1000	R12 Drum
4*25RS	4*7/2.13	0.9	1.8	25	132	110	0.727	1208	1000	R14 Drum
4*35RS	4*7/2.52	0.9	1.8	27	159	135	0.524	1612	1000	R14 Drum
4*50RS	4*19/1.78	1	1.9	28	188	163	0.387	1027	500	R14 Drum
4*70RS	4*19/2.13	1.1	2	32	233	207	0.268	1442	500	R16 Drum
4*95RS	4*19/2.52	1.1	2.1	36	279	251	0.193	1957	500	R16 Drum
4*120RS	4*37/2.03	1.2	2.3	39	317	290	0.153	2451	500	R18 Drum
4*150RS	4*37/2.25	1.4	2.4	44	355	332	0.124	3017	500	R18 Drum
4*185RS	4*37/2.52	1.6	2.6	48	401	378	0.0991	3763	500	R20 Drum
4*240RS	4*61/2.25	1.7	2.8	54	462	445	0.0754	4871	500	R20 Drum
