0.6/1KV

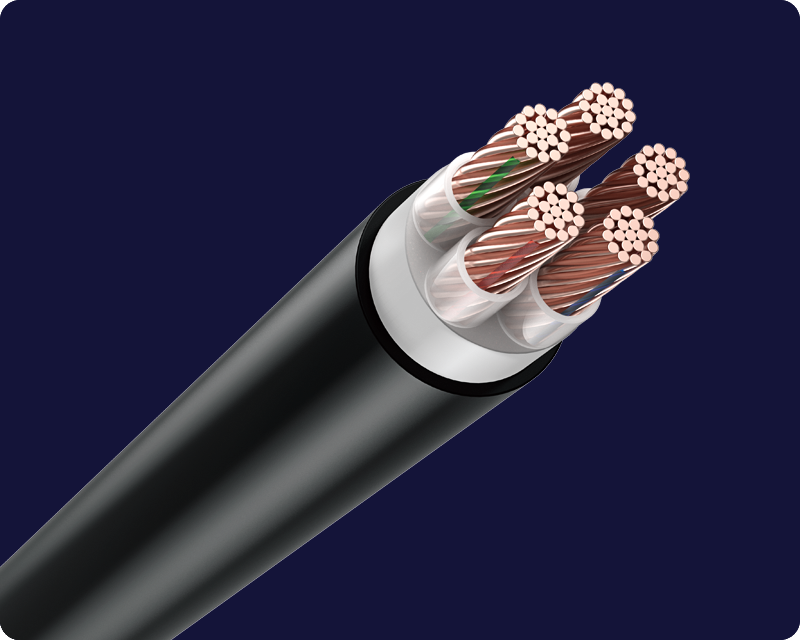

PVC Insulation and cross-linked material five core non-armor copper

Application	Suitable for fixed installation in dry or wet environment
Specification	BS 6346, NIS/IEC 60502-1
Type	XLPE/PVC-5C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
5*4.0RS	5*7/0.86	0.7	1.8	14	45	34	4.61	332	1000	R12 Drum
5*6.0RS	5*7/1.06	0.7	1.8	15	57	43	3.08	446	1000	R12 Drum
5*10RS	5*7/1.35	0.7	1.8	19	77	60	1.83	691	1000	R12 Drum
5*16RS	5*7/1.70	0.7	1.8	22	105	83	1.15	1007	1000	R14 Drum
5*25RS	5*7/2.13	0.9	1.8	25	125	105	0.727	1504	1000	R14 Drum
5*35RS	5*7/2.52	0.9	1.8	28	155	125	0.524	1004	500	R14 Drum
5*50RS	5*19/1.78	1	2	33	185	160	0.387	1363	500	R16 Drum
5*70RS	5*19/2.13	1.1	2.1	37	225	200	0.268	1911	500	R16 Drum
5*95RS	5*19/2.52	1.1	2.3	43	270	245	0.193	2595	500	R18 Drum
5*120RS	5*37/2.03	1.2	2.4	48	310	285	0.153	3175	500	R18 Drum
5*150RS	5*37/2.25	1.4	2.6	53	345	325	0.124	3935	500	R20 Drum
5*185RS	5*37/2.52	1.6	2.8	59	450	440	0.0991	4894	500	R20 Drum
