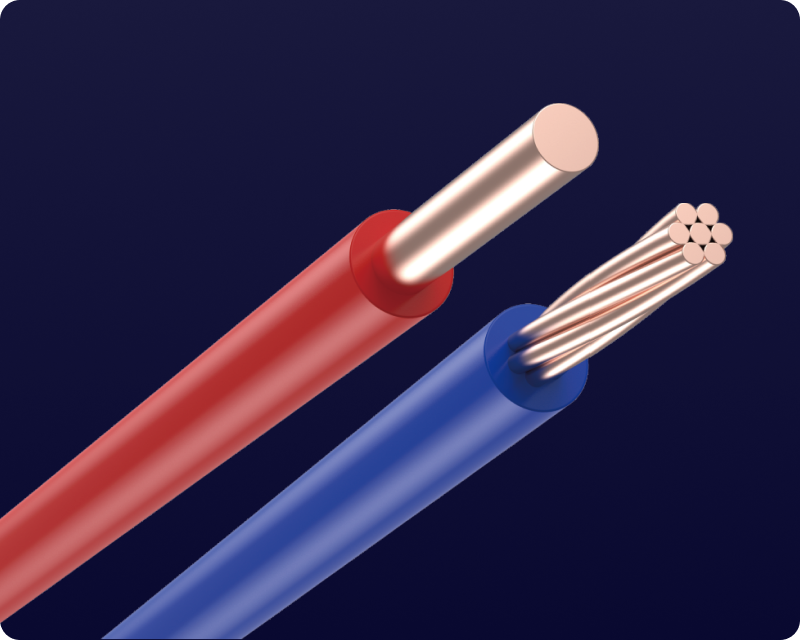

PVC Insulated Single Core Copper Cable
|
Application
|
Insulation of surface mounting or embedded conduitsor cable trays for electrical installations in householdequipment and industrial machinery
|
|
Specifications
|
NIS/IEC 60227-3,NIS/IEC 60228
|
|
Reference
|
BS 6004,IEC 228
|
|
Type
|
Single
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperatureis 35℃
The maximum rated current in the air is considered at 40C temperature
RS= Round stranded conductor
RW= Circular solid wire (conductor)
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) | ||
0.5RW | 1*0.80 | 0.6 | - | 2 | 5 | 8 | 36 | 0.9 | 100 | Coil | ||
1.0RW | 1*1.13 | 0.7 | - | 2.6 | 9 | 15 | 18.1 | 1.5 | 100 | Coil | ||
1.5RW | 1*1.38 | 0.7 | - | 3.2 | 14 | 23 | 12.1 | 2 | 100 | Coil | ||
2.5RW | 1*1.78 | 0.8 | - | 3.9 | 19 | 31 | 7.41 | 3.1 | 100 | Coil | ||
4RW | 1*2.25 | 0.8 | - | 4.4 | 24 | 40 | 4.61 | 4.6 | 100 | Coil | ||
4RS | 7*0.86 | 0.8 | - | 4.6 | 27 | 44 | 4.61 | 4.7 | 100 | Coil | ||
6RS | 7*1.06 | 0.8 | - | 5.2 | 35 | 55 | 3.08 | 6.7 | 100 | Coil | ||
10RS | 7*1.35 | 1 | - | 6.7 | 42 | 70 | 1.83 | 11.3 | 100 | Coil | ||
16RS | 7*1.70 | 1 | - | 7.8 | 55 | 91 | 1.15 | 17 | 100 | Coil | ||
25RS | 7*2.13 | 1.2 | - | 9.7 | 73 | 122 | 0.727 | 26.7 | 100 | Coil | ||
35RS | 7*2.52 | 1.2 | - | 10.9 | 91 | 152 | 0.524 | 36.1 | 100 | Coil | ||
50RS | 19*1.78 | 1.4 | - | 12.8 | 112 | 187 | 0.387 | 490 | 100 | R10 Drum | ||
70RS | 19*2.13 | 1.4 | - | 14.6 | 141 | 235 | 0.268 | 690 | 100 | R10 Drum | ||
