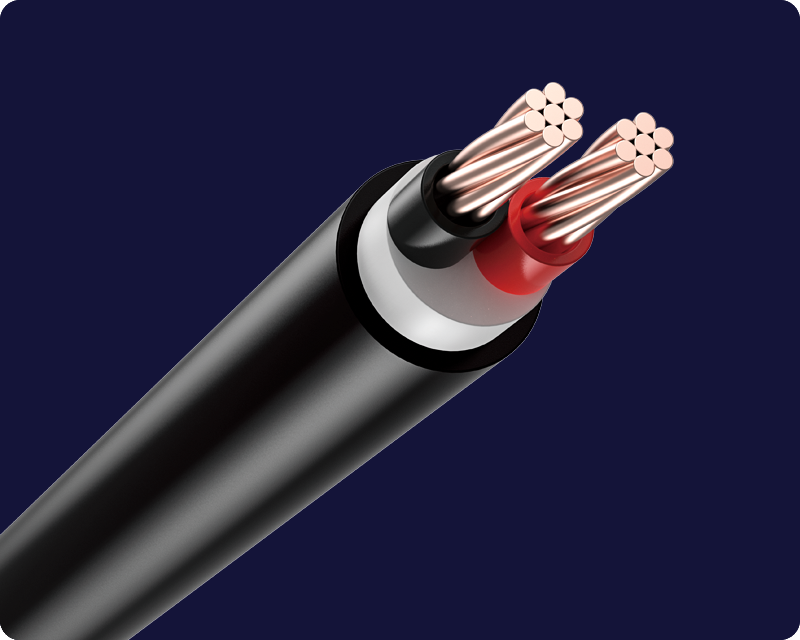

PVC insulated and sheathed two core non-armored copper cable
|
Application
|
Suitable for fixed installation in dry or wet environment
|
|
Specifications
|
NIS/IEC 60502-1
|
|
Reference
|
BS 6004
|
|
Type
|
UNARMOURED-PVC/PVC-2C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground
Temperature is 35℃
The maximum rated current in the air is considered at 40℃ temperature
RS= Round stranded conductor
RW= Circular solid wire (conductor)
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
2*1.5RW | 2*1.38 | 0.8 | 1.8 | 9.6 | 32 | 22 | 12.1 | 113 | 1000 | R8 Drum |
2*2.5RW | 2*1.78 | 0.8 | 1.8 | 10.8 | 41 | 31 | 7.41 | 157 | 1000 | R10 Drum |
2*4.0RS | 2*7/0.86 | 1 | 1.8 | 12.2 | 55 | 41 | 4.61 | 219 | 1000 | R10 Drum |
2*6.0RS | 2*7/1.06 | 1 | 1.8 | 13.9 | 69 | 53 | 3.08 | 275 | 1000 | R10 Drum |
2*10.0RS | 2*7/1.35 | 1 | 1.8 | 16.1 | 92 | 72 | 1.83 | 400 | 1000 | R10 Drum |
2*16.0RS | 2*7/1.70 | 1 | 1.8 | 18.6 | 119 | 97 | 1.15 | 557 | 1000 | R10 Drum |
2*25.0RS | 2*7/2.13 | 1.2 | 1.8 | 18.4 | 158 | 128 | 0.727 | 864 | 1000 | R12 Drum |
2*35.0RS | 2*7/2.52 | 1.2 | 1.8 | 24.5 | 190 | 157 | 0.524 | 1136 | 1000 | R12 Drum |
2*50.0RS | 2*19/1.78 | 1.4 | 1.8 | 26.8 | 225 | 190 | 0.387 | 1462 | 1000 | R16 Drum |
2*70.0RS | 2*19/2.13 | 1.4 | 1.9 | 29.5 | 277 | 241 | 0.268 | 991 | 500 | R14 Drum |
2*95.0RS | 2*19/2.52 | 1.6 | 2 | 33.3 | 332 | 291 | 0.193 | 1347 | 500 | R16 Drum |
