0.6/1KV

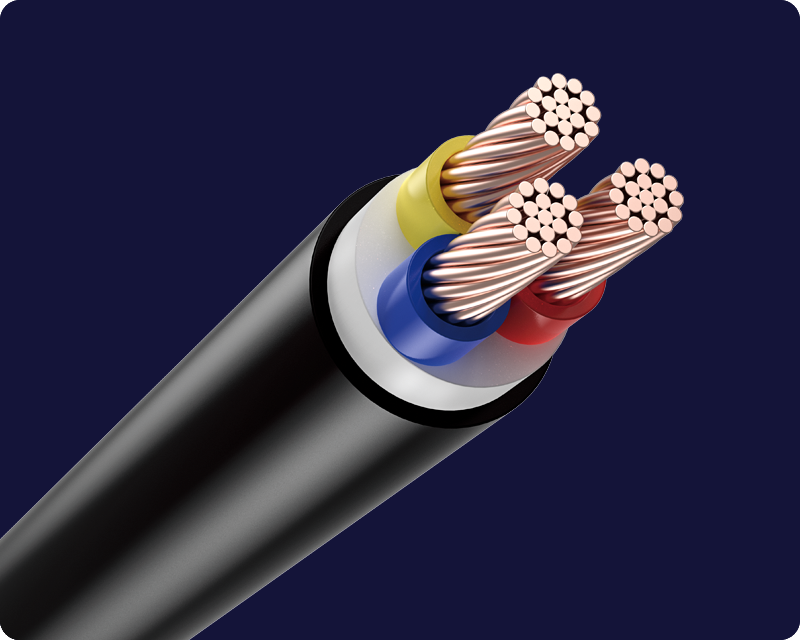

PVC insulated and sheathed three core non-armored copper cable

Application	Suitable for fixed installation in dry or wet environment
Specifications	NIS/IEC60502-1
Reference	BS 6004
Type	UNARMOURED-PVC/PVC-3C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground Temperature is 35℃

The maximum rated current in the airis considered at 40℃ temperature

RS= Round stranded conductor

RW= Circular solid wire (conductor)

Nominal Cross-sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
3*1.5RW	3*1.38	0.8	1.8	10	27	19	12.1	144	1000	R8 Drum
3*2.5RW	3*1.78	0.8	1.8	11	35	26	7.41	197	1000	R10 Drum
3*4.0RS	3*7/0.86	0.8	1.8	13	47	35	4.61	275	1000	R10 Drum
3*6.0RS	3*7/1.06	0.8	1.8	14	59	45	3.08	349	1000	R10 Drum
3*10.0RS	3*7/1.35	1	1.8	17	78	62	1.83	503	1000	R12 Drum
3*16.0RS	3*7/1.70	1	1.8	20	101	83	1.15	745	1000	R12 Drum
3*25.0RS	3*7/2.13	1.2	1.8	23	132	110	0.727	1117	1000	R14 Drum
3*35.0RS	3*7/2.52	1.2	1.8	26	159	135	0.524	1437	1000	R14 Drum
3*50.0RS	3*19/1.78	1.4	1.8	27	188	163	0.387	947	500	R14 Drum
3*70.0RS	3*19/2.13	1.4	1.9	29	233	207	0.268	1302	500	R16 Drum
3*95RS	3*19/2.52	1.6	2.1	33	279	251	0.193	1600	500	R16 Drum
3*120RS	3*37/2.03	1.6	2.2	36	317	290	0.153	1990	500	R18 Drum
3*150RS	3*37/2.25	1.8	2.3	40	355	332	0.124	2475	500	R18 Drum
3*185RS	3*37/2.52	2	2.4	45	401	378	0.0991	3080	500	R18 Drum
3*240RS	3*61/2.25	2.2	2.6	50	462	445	0.0754	4005	500	R20 Drum
