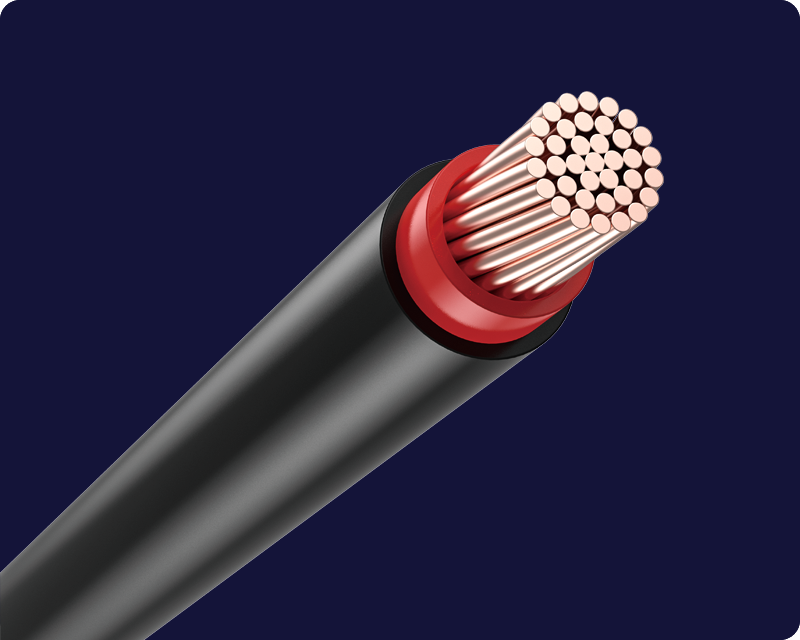

PVC insulated and sheathed single core non-armored coppercable
|
Application
|
Used for indoor installation, cable conduit/tray in industrial plant, substation and power distribution scheme
|
|
Specifications
|
NIS/EC 60502-1,BS6346
|
|
Type
|
UNARMOURED CABLE-PVC/PVC-1C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃
The maximum rated current in the air is considered at 40C temperature
Flex design
RS= Round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
50RS | 19*1.78 | 1.4 | 1.5 | 14.5 | 203 | 181 | 0.387 | 742 | 1000 | R10 Drum |
70RS | 19*2.13 | 1.4 | 1.6 | 15.8 | 248 | 231 | 0.268 | 775 | 1000 | R12 Drum |
95RS | 19*2.52 | 1.6 | 1.6 | 18.5 | 297 | 280 | 0.193 | 1248 | 1000 | R12 Drum |
120RS | 19*2.89 | 1.6 | 1.7 | 20.4 | 337 | 324 | 0.153 | 1376 | 1000 | R12 Drum |
150RS | 37*2.25 | 1.8 | 1.7 | 22.1 | 376 | 373 | 0.124 | 1514 | 1000 | R14 Drum |
185RS | 37*2.52 | 2 | 1.8 | 24.8 | 423 | 425 | 0.0991 | 930 | 500 | R16 Drum |
240RS | 61*2.25 | 2.2 | 1.9 | 27.9 | 485 | 501 | 0.0754 | 1207 | 500 | R12 Drum |
300RS | 61*2.52 | 2.4 | 1.9 | 31 | 542 | 567 | 0.0601 | 1376 | 500 | R14 Drum |
400RS | 61*2.85 | 2.6 | 2.1 | 34.2 | 600 | 657 | 0.047 | 1844 | 500 | R14 Drum |
500RS | 61*3.20 | 2.8 | 2.1 | 37.7 | 660 | 731 | 0.0366 | 2100 | 500 | R10 Drum |
