0.6/1KV

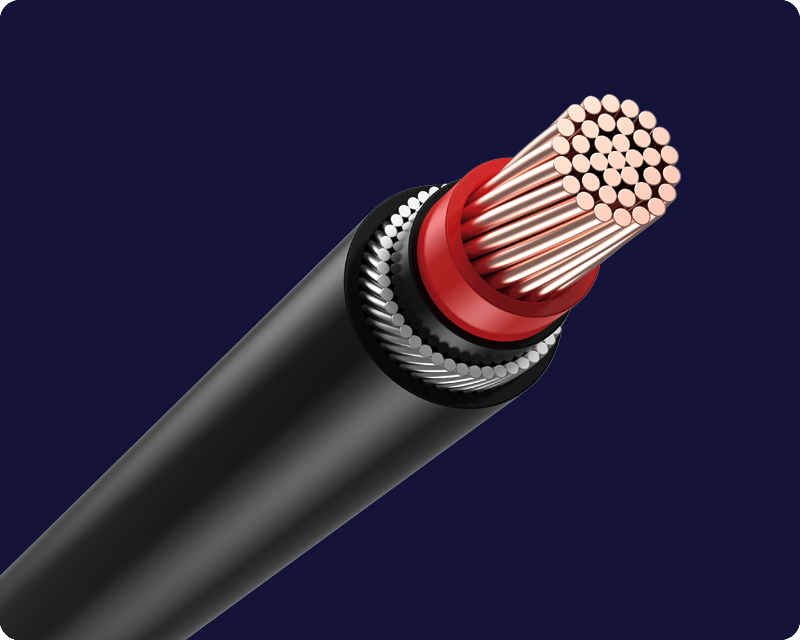

PVC Insulated and sheathed single-core armoured copper cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
Specification	NIS/EC60502-1, BS 6346
Type	ARMOURED-PVC/PVC-1C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
50RS	19*1.78	1.4	1	1.6	1.6	19.1	203	181	0.387	1024	1000	R12 Drum
70RS	19*2.13	1.4	1	1.7	1.6	21.1	248	231	0.268	1034	1000	R14 Drum
95RS	19*2.52	1.6	1	1.7	1.6	23.4	297	280	0.193	1665	1000	R14 Drum
120RS	37*2.03	1.6	1	1.8	1.6	26.3	337	324	0.153	1701	1000	R14 Drum
150RS	37*2.25	1.8	1	1.9	1.6	28.3	376	373	0.124	2018	1000	R16 Drum
185RS	37*2.52	2	1	1.9	1.6	30.8	423	425	0.0991	1232	500	R14 Drum
240RS	61*2.25	2.2	1	2.1	2	34.1	485	501	0.0754	1610	500	R16 Drum
300RS	61*2.52	2.4	1.2	2.2	2	37	542	567	0.0601	1834	500	R16 Drum
400RS	61*2.85	2.6	1.2	2.3	2	42	600	657	0.047	2459	500	R18 Drum
500RS	61*3.20	2.8	1.2	2.4	2.5	45.6	660	731	0.0366	2471	500	R18 Drum
