0.6/1KV

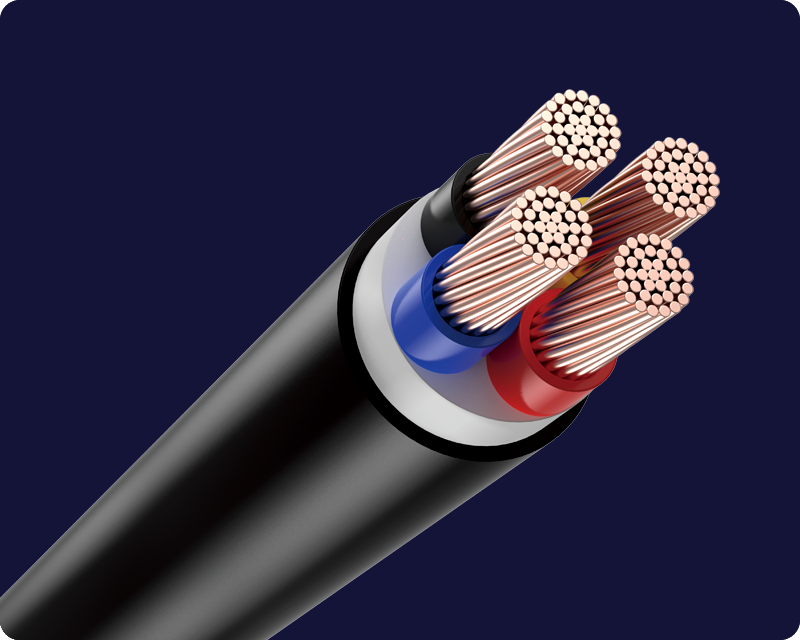

PVC insulated and sheathed four core non-armored coppercable

Application	Suitable for fixed installation in dry or wet environment
Specifications	NIS/IEC 60502-1
Reference	BS 6346,NIS/IEC 60502-1
Type	UNARMOURED-PVC/PVC-4C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground Temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= Round stranded conductor

Nominal Cross-sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
4*1.5RW	4*1.38	0.8	1.2	11	27	19	12.1	171	1000	R10 Drum
4*2.5RW	4*1.78	0.8	1.2	12	35	26	7.41	235	1000	R10 Drum
4*4.0RS	4*7/0.86	1	1.2	14	47	35	4.61	232	1000	R10 Drum
4*6.0RS	4*7/1.06	1	1.4	15	59	45	3.08	417	1000	R10 Drum
4*10RS	4*7/1.35	1	1.8	19	78	62	1.83	637	1000	R12 Drum
4*16RS	4*7/1.70	1	1.8	22	101	83	1.15	922	1000	R12 Drum
4*25RS	4*7/2.13	1.2	1.8	23	132	110	0.727	1397	1000	R14 Drum
4*35RS	4*7/2.52	1.2	1.8	25	159	135	0.524	1824	1000	R14 Drum
4*50RS	4*19/1.78	1.4	2	29	188	163	0.387	1195	500	R14 Drum
4*70RS	4*19/2.13	1.4	2.1	33	233	207	0.268	1655	500	R16 Drum
4*95RS	4*19/2.52	1.6	2.2	38	279	251	0.193	2280	500	R16 Drum
4*120RS	4*37/2.03	1.6	2.3	42	317	290	0.153	2790	500	R18 Drum
4*150RS	4*37/2.25	1.8	2.5	46	355	332	0.124	3450	500	R18 Drum
4*185RS	4*37/2.52	2	2.7	51	401	378	0.0991	4225	500	R20 Drum
4*240RS	4*61/2.25	2.2	3	58	462	445	0.0754	5255	500	R20 Drum
