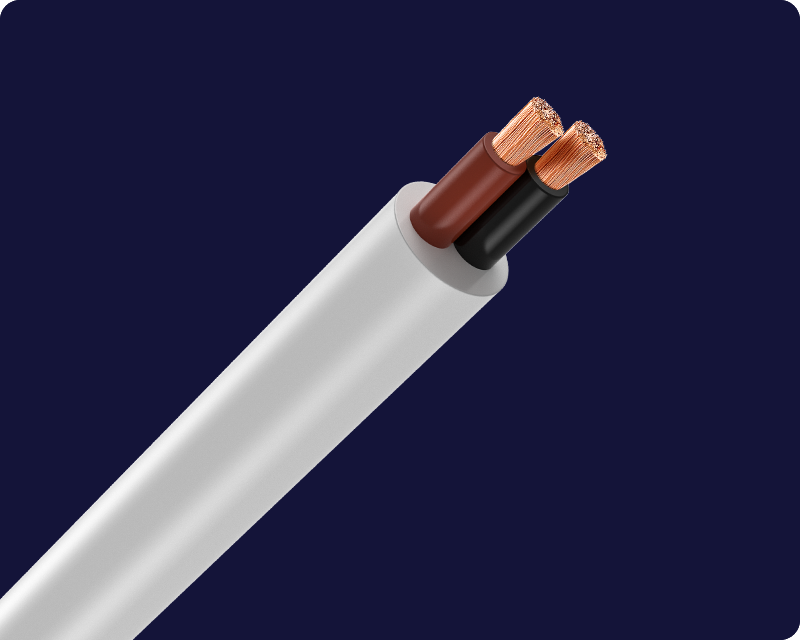

PVC insulated and sheathed flexible copper cable two core
|
Application
|
Connection of household and other electronic devicesto power systems
|
|
Specifications
|
NIS/IEC 60228,NIS/IEC 60227-
|
|
Reference
|
Bs6500,NIS159
|
|
Type
|
FLEX-2C/3C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground
temperature is 35℃
The maximum rated current in the airis considered at 40℃ temperature
Flex design
RS= Round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
2*0.5RS | 2*16*0.20 | 0.6 | 0.8 | 5.8 | - | 6 | 39 | 5.3 | 100 | Coil |
2*1.0RS | 2*32*0.20 | 0.6 | 0.8 | 6.6 | - | 12 | 19.5 | 7.3 | 100 | Coil |
2*1.5RS | 2*48*0.20 | 0.7 | 0.8 | 7.2 | - | 18 | 13.3 | 9 | 100 | Coil |
2*2.5RS | 2*79*0.20 | 0.8 | 1 | 9 | - | 25 | 7.98 | 14.3 | 100 | Coil |
2*4.0RS | 2*81*0.25 | 0.8 | 1 | 11 | - | 33 | 4.95 | 21.2 | 100 | Coil |
2*6.0RS | 2*84*0.30 | 0.8 | 1 | 12.2 | - | 40 | 3.3 | 10-13 | 100 | Coil |
2*8.0RS | 2*84*0.35 | 0.8 | 1 | 13.5 | - | 50 | 13-16 | 100 | Coil | |
2*10RS | 2*315*0.20 | 1 | 1.2 | 15 | - | 55 | 1.91 | 16-20 | 100 | Coil |
2*16RS | 2*322*0.25 | 1 | 1.2 | 18 | - | 75 | 1.21 | 26-32 | 100 | Coil |
2*25RS | 2*504*0.25 | 1.2 | 1.4 | 22.5 | - | 100 | 0.78 | 38-46 | 100 | Coil |
