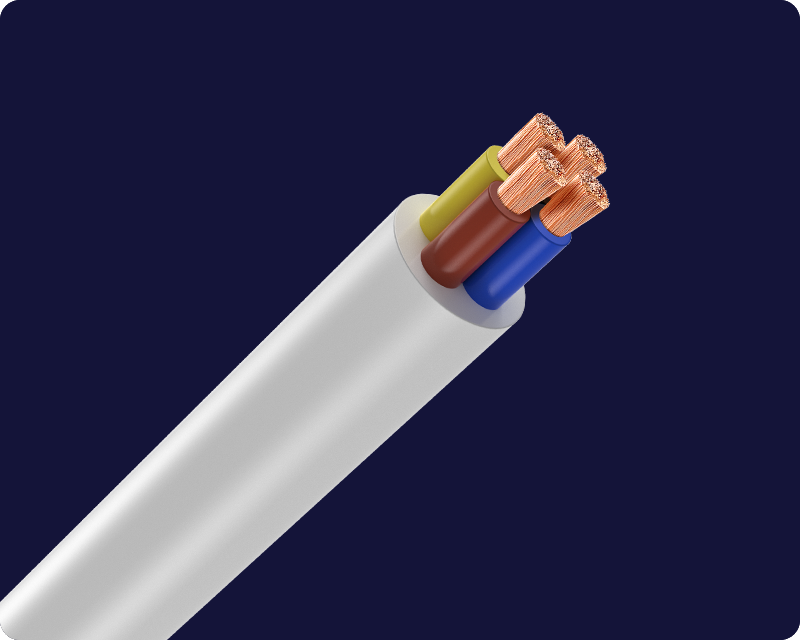

PVC insulated and sheathed flexible copper cable four core
|
Application
|
Used for fixed protection inside the equipment andinside or on the lighting equipment
|
|
Specifications
|
NIS/IEC 60228,NIS/IEC 60227-5
|
|
Reference
|
BS6500,NIS159
|
|
Type
|
FLEX-4C
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground Temperature is 35℃
The maximum rated current in the air is considered at 40C temperature
Flex design
RS= Round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
4*1.0RS | 4*32*0.20 | 0.6 | 0.9 | 9 | 9.6 | 19.5 | 10.6 | 100 | Coil | |
4*1.5RS | 4*48*0.20 | 0.7 | 1 | 10.5 | 10 | 13.3 | 15.2 | 100 | Coil | |
4*2.5RS | 4*79*0.20 | 0.8 | 1.1 | 12.5 | 20 | 7.98 | 20.1 | 100 | Coil | |
4*4.0RS | 4*81*0.25 | 0.8 | 1.2 | 11.8-14.6 | 27.5 | 4.95 | 30.6 | 100 | Coil | |
4*6.0RS | 4*84*0.30 | 0.8 | 1.2 | 12.7-16.4 | 32.5 | 3.3 | 42.8 | 100 | Coil | |
