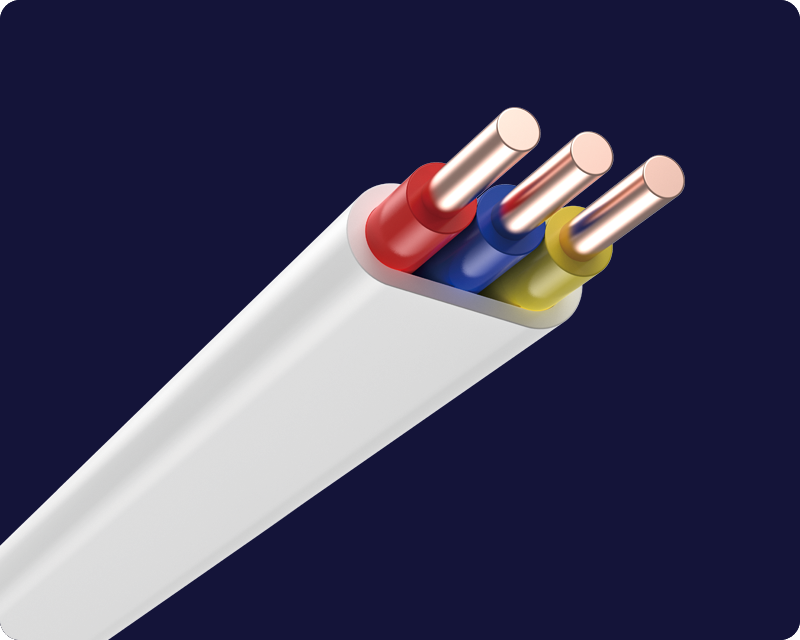

PVC Insulated and sheathed flat three core copper cable
|
Application
|
Suitable for surface mounting in dry and wet places
|
|
Specification
|
NIS/IEC 60228, NIS 1066
|
|
Reference
|
BS6004
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground temperature is 35℃
The maximum rated current in the air is considered at 40℃ temperature
RS= round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
3*1.0RW | 3*1.13 | 0.6 | 0.9 | 4.4*9.4 | 13 | 18.1 | 8.3 | 100 | Coil | |
3*1.5RW | 3*1.38 | 0.7 | 0.9 | 4.8*10.5 | 16 | 12.1 | 9.8 | 100 | Coil | |
3*2.5RW | 3*1.78 | 0.8 | 1 | 5.6*12.5 | 22 | 7.41 | 15.5 | 100 | Coil | |
3*4RW | 3*2.25 | 0.8 | 1 | 6.3*14.4 | 30 | 4.61 | 21.3 | 100 | Coil | |
