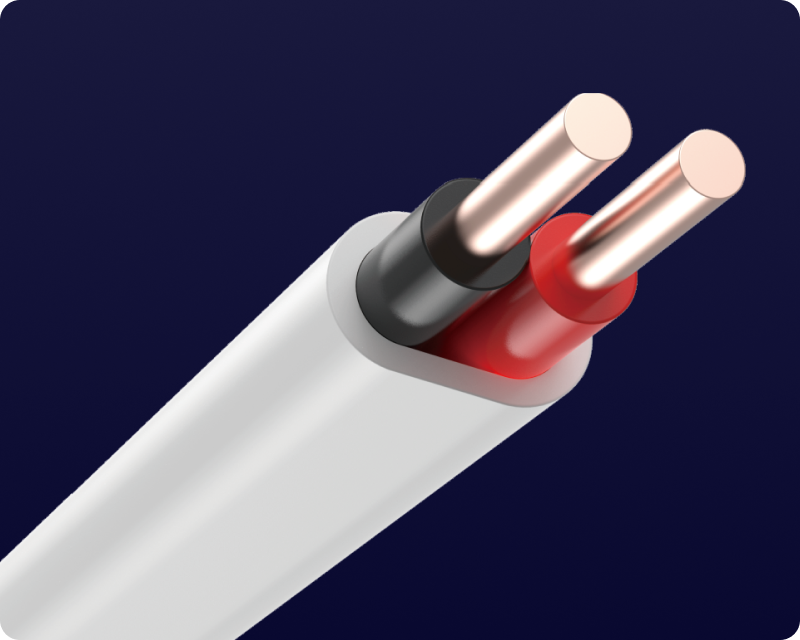

PVC Insulated and sheathed flat double core copper cable
|
Application
|
Suitable for surface mounting in dry and wet places
|
|
Specifications
|
NIS/IEC 60228,NIS 1066
|
|
Reference
|
BS 6004
|
|
Type
|
FLAT-2C/2C+E
|
Precautions
The maximum allowable temperature of the conductor under use is 70℃
The maximum rated current on the ground is considered when the ground Temperature is 35℃
The maximum rated current in the air is considered at 40C temperature
RW= Circular solid wire (conductor)
RS= Round stranded conductor
Parameters
Nominal Cross-sectional Area | Number of Conductors and Wire Diameter | Minimum Thickness within the Range | Nominal Outer Diameter | Maximum Rated Current | Maximum Conductor Resistance at 20℃ | Approximate Net Weight/Standard Delivery Length | Standard Delivery Length | Form of Delivery | ||
(mm²) | (mm) | Insulation (mm) | Sheath (mm) | (mm) | within the domain (A) | in the air (A) | (Ω/km) | (kg) | (m) | (Coil/Wooden Drum) |
2*1.0RW | 2*1.13 | 0.6 | 0.9 | 4.4*6.8 | 12 | 18.1 | 4.5 | 100 | Coil | |
2*1.5RW | 2*1.38 | 0.7 | 0.9 | 4.8*7.6 | 18 | 12.1 | 6 | 100 | Coil | |
2*2.5RW | 2*1.78 | 0.8 | 1 | 5.6*9.0 | 25 | 7.41 | 8.8 | 100 | Coil | |
2*4RW | 2*2.25 | 0.8 | 1 | 6.1*10.1 | 33 | 4.61 | 12.2 | 100 | Coil | |
2*6RS | 2*7/1.04 | 0.8 | 1.1 | 7.3*12.3 | 42 | 3.08 | 17.5 | 100 | Coil | |
