0.6/1KV

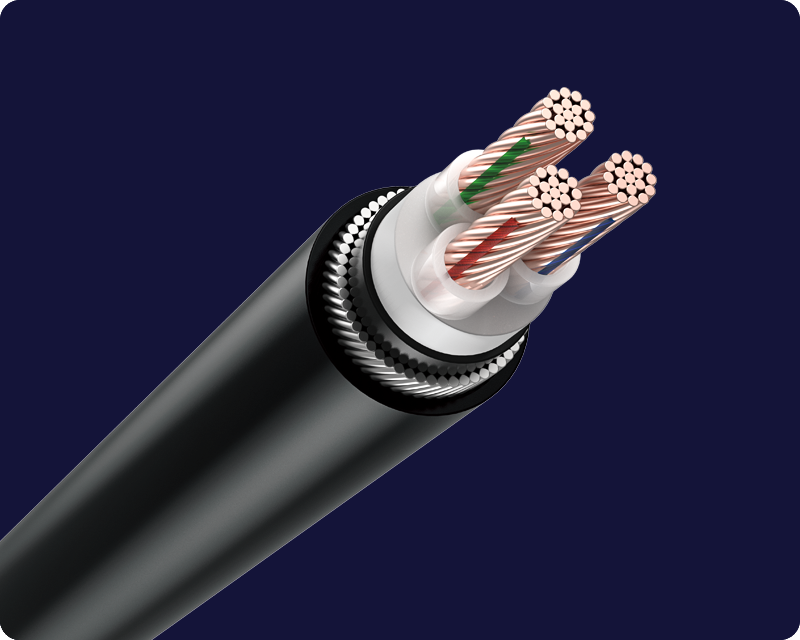

PVC Insulated and cross-linked three-core armored copper core cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes
Specification	NIS/EC 60502-1, BS 6346
Type	XLPE/SWA/PVC-3C

Precautions

01

/

The maximum allowable temperature of the conductor under use is 70℃

02

/

The maximum rated current on the ground is considered when the ground temperature is 35℃

03

/

The maximum rated current in the air is considered at 40℃ temperature

Parameters

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
3*4	3*7/0.86	0.7	0.8	1.4	1.25	16	47	35	4.61	476	1000	R12 Drum
3*6	3*7/1.06	0.7	0.8	1.5	1.25	17	59	45	3.08	571	1000	R12 Drum
3*10	3*7/1.35	0.7	0.8	1.6	1.6	20	78	62	1.83	784	1000	R12 Drum
3*16	3*7/1.70	0.7	0.8	1.6	1.6	24	101	83	1.15	1341	1000	R14 Drum
3*25	3*7/2.13	0.9	1	1.7	1.6	28	132	110	0.727	1750	1000	R14 Drum
3*35	3*7/2.52	0.9	1	1.8	1.6	30	159	135	0.524	2154	1000	R14 Drum
3*50	3*19/1.78	1	1	1.9	2	31	188	163	0.387	2527	1000	R14 Drum
3*70	3*19/2.13	1.1	1.2	2	2	35	233	207	0.268	3537	1000	R16 Drum
3*95	3*19/2.52	1.1	1.2	2	2.5	38	279	251	0.193	2239	500	R16 Drum
3*120	3*37/2.03	1.2	1.3	2.4	2.5	42	317	290	0.153	2694	500	R18 Drum
3*150	3*37/2.25	1.4	1.3	2.5	2.5	46	355	332	0.124	3409	500	R18 Drum
3*185	3*37/2.52	1.6	1.4	2.7	2.5	51	401	378	0.0991	4107	500	R20 Drum
3*240	3*61/2.25	1.7	1.5	2.9	2.5	56	462	445	0.0754	5126	500	R20 Drum
