0.6/1KV

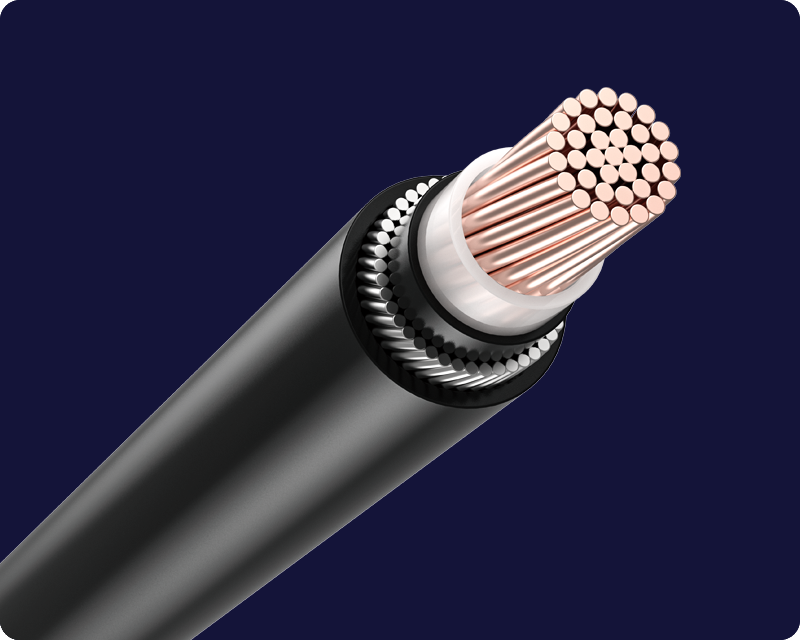

PVC Insulated and cross-linked single-core armored copper core cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes.
Specification	NIS/EC 60502-1, BS 6346
Type	XLPE/SWA/PVC-1C

Precautions

The maximum allowable temperature of the conductor under use is 70℃

The maximum rated current on the ground is considered when the ground temperature is 35℃

The maximum rated current in the air is considered at 40℃ temperature

RS= round stranded conductor

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
50RS	19*1.78	1	1	1.6	1.6	18	203	181	0.387	848	1000	R12 Drum
70RS	19*2.13	1.1	1	1.7	1.6	20	248	231	0.268	1103	1000	R14 Drum
95RS	19*2.52	1.1	1	1.7	1.6	24	297	280	0.193	1681	1000	R14 Drum
120RS	37*2.03	1.2	1	1.8	1.6	25	337	324	0.153	1981	1000	R14 Drum
150RS	37*2.25	1.4	1	1.9	1.6	27	376	373	0.124	2334	1000	R16 Drum
185RS	37*2.52	1.6	1	1.9	1.6	29	423	425	0.0991	1395	500	R14 Drum
240RS	61*2.25	1.7	1	2.1	2	32	485	501	0.0754	1719	500	R16 Drum
300RS	61*2.52	1.8	1.2	2.2	2	35	542	567	0.0601	2189	500	R16 Drum
400RS	61*2.85	2	1.2	2.3	2	39	600	657	0.047	2629	500	R18 Drum
500RS	61*3.20	2.2	1.2	2.4	2.5	43	660	731	0.0366	3297	500	R18 Drum
