0.6/1KV

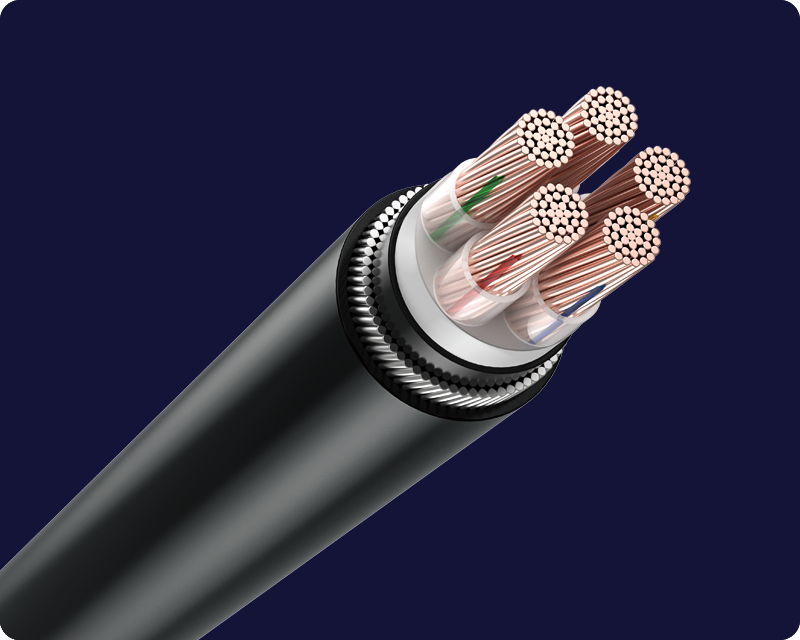

PVC Insulated and cross-linked five-core armored copper core cable

Application	Used for indoor installation, cable conduit/tray. Additional protection against mechanical damage in industrial plant substation underground and power distribution schemes.
Specification	NIS/EC 60502-1, BS 6346
Type	XLPE/SWA/PVC-5C

Precautions

01

/

The maximum allowable temperature of the conductor under use is 70℃

02

/

The maximum rated current on the ground is considered when the ground temperature is 35℃

03

/

The maximum rated current in the air is considered at 40℃ temperature

Parameters

Nominal Cross-sectional Area	Number of Conductors Diameter	Minimum Thickness within the Range			Armour Wire Diameter	Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm2)	(mm)	Insulation (mm)	Inner sheath (mm)	Outer sheath (mm)	(mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
5*4	5*7/0.86	0.7	1.2	1.8	1.25	18	45	34	4.61	622	1000	R12 Drum
5*6	5*7/1.06	0.7	1.2	1.8	1.25	19	57	43	3.08	763	1000	R14 Drum
5*10	5*7/1.35	0.7	1.2	1.8	1.6	24	77	60	1.83	1391	1000	R14 Drum
5*16	5*7/1.70	0.7	1.2	1.8	1.6	27	105	83	1.15	1819	1000	R16 Drum
5*25	5*7/2.13	0.9	1.2	1.9	1.6	31	125	105	0.727	2444	1000	R16 Drum
5*35	5*7/2.52	0.9	1.2	2	2	35	155	125	0.524	1654	500	R16 Drum
5*50	5*19/1.78	1	1.4	2.2	2	39	185	160	0.387	2111	500	R18 Drum
5*70	5*19/2.13	1.1	1.4	2.3	2	44	225	200	0.268	2965	500	R18 Drum
5*95	5*19/2.52	1.1	1.4	2.5	2.5	51	270	245	0.193	3818	500	R20 Drum
5*120	5*37/2.03	1.2	1.6	2.6	2.5	56	310	285	0.153	2267	250	R20 Drum
5*150	5*37/2.25	1.4	1.6	2.8	2.5	61	345	325	0.124	2727	250	R22 Drum
5*185	5*37/2.52	1.6	1.6	3	2.5	68	450	440	0.0991	3303	250	R22 Drum
