0.6/1KV

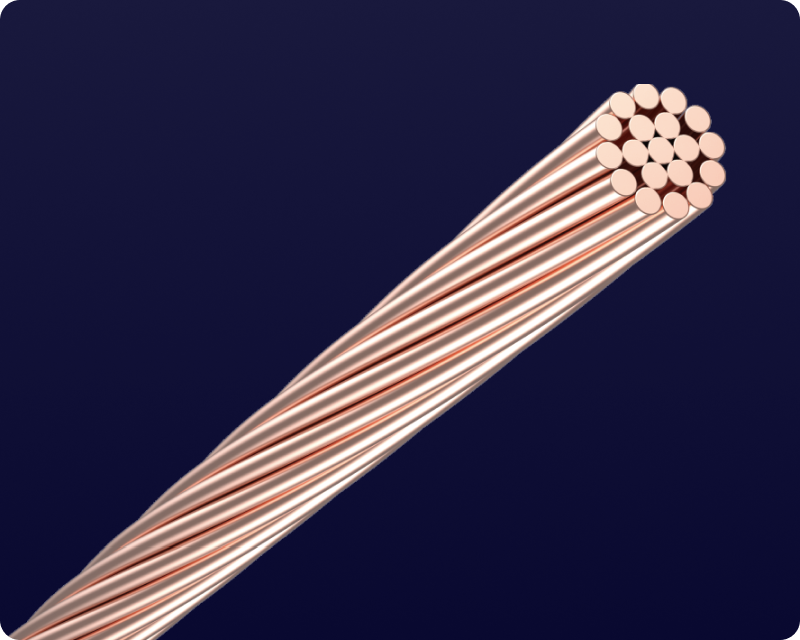

Bare Conductor with Copper Wire

Precautions

The maximum allowable temperature of the conductor under use is 70°C

The maximum rated current on the ground is considered when the ground Temperature is 35°C

The maximum rated currentin the air is considered at 40C temperature

RS= Round stranded conductor

Nominal Cross- sectional Area	Number of Conductors and Wire Diameter	Minimum Thickness within the Range		Nominal Outer Diameter	Maximum Rated Current		Maximum Conductor Resistance at 20℃	Approximate Net Weight/Standard Delivery Length	Standard Delivery Length	Form of Delivery
(mm²)	(mm)	Insulation (mm)	Sheath (mm)	(mm)	within the domain (A)	in the air (A)	(Ω/km)	(kg)	(m)	(Coil/Wooden Drum)
6RS	7 x 1.06	non	non	3.2		57	3.08	538	10000	R8
10RS	7 x 1.35	non	non	4.1		78	1.83	179.2	2000	R8
16RS	7 x 1.70	non	non	5.1		109	1.15	286	2000	R8
25RS	7 x 2.13	non	non	6.4		139	0.727	452	2000	R10
35RS	7 x 2.52	non	non	7.6		174	0.524	628	2000	R10 Drum
50RS	19 x 1.78	non	non	8.9		218	0.387	890	2000	R10 Drum
70RS	19 x 2.13	non	non	10.7		270	0.268	1236	2000	R10 Drum
95RS	19 x 2.52	non	non	12.6		331	0.193	1704	2000	R12 Drum
120RS	37 x 2.03	non	non	14.2		383	0.153	2643	2500	R14 Drum
150RS	37 x 2.25	non	non	15.8		444	0.124	2678	2000	R14 Drum
